JN0-637 Online Practice Questions and Answers

Correct Answer: D

The command show security nat source persistent-nat-table all provides a comprehensive view of all entries in the persistent NAT table, enabling administrators to monitor and manage resource exhaustion. Refer to Juniper NAT Monitoring

Guide for more.

In Junos OS, when persistent NAT is configured, a binding table is created to keep track of NAT sessions and ensure that specific hosts are allowed to initiate sessions back to internal hosts. To check if the persistent NAT binding table is full

or exhausted, the correct command must display theentire table.

Correct Command (D):

The command show security nat source persistent-nat-table all will display the entire persistent NAT binding table. This allows you to check whether the table is exhausted or if there is space available for new persistent NAT sessions.

Incorrect Options:

Option A: The command show security nat source persistent-nat-table summary provides a summary view but does not give detailed insights into whether the table is exhausted. Option Band Option C : These commands deal with general

NAT source summaries or pools, which are not related specifically to persistent NAT bindings.

Juniper References:

Juniper Persistent NAT Documentation: Describes the persistent NAT binding table and the commands used to monitor its status.

Correct Answer: ABC

In this scenario, you are prioritizing VoIP traffic over data traffic across an IPsec VPN. Here are the necessary actions:

Enable next-hop tunnel binding (Answer A): This is required to bind the VPN traffic to a specific tunnel interface (like st0.0). It allows differentiated forwarding behavior (like prioritizing VoIP) for specific traffic types. Command Example: bash Copy code set interfaces st0.0 next-hop-tunnel-service Create a firewall filter (Answer B): The filter will match VoIP traffic based on criteria such as DSCP marking or ports (like port 5060 for SIP). Once identified, the traffic will be associated with a forwarding class, ensuring it gets prioritized. Command Example: bash Copy code set firewall family inet filter VoIP-Filter term VoIP from protocol udp set firewall family inet filter VoIP-Filter term VoIP from port 5060 set firewall family inet filter VoIP-Filter term VoIP then forwarding-class voice Configure CoS (Class of Service) forwarding classes (Answer C): CoS parameters define how the SRX handles different types of traffic (scheduling, shaping, etc.). VoIP traffic must be assigned a higher priority than data. Command Example: bash Copy code set class-of-service forwarding-classes voice set class-of-service forwarding-classes data set class-of-service schedulers voice_scheduler transmit-rate percent 50 These configurations ensure that VoIP traffic is identified, classified, and forwarded with priority.

Correct Answer: B

In this scenario, you are deploying two vSRX instances across different public cloud providers. Since Layer 2 connectivity is not possible between the two instances, traditional chassis clustering (which requires L2) will not work. Instead, you

can use Secure Wire to connect the two vSRX instances, ensuring that traffic flows between them securely without Layer 2 requirements.

of Answer B (Secure Wire):

Secure Wireis a feature in Junos that allows two interfaces on the SRX to act as a Layer 2 wire, passing traffic transparently between them. However, traffic passing through the secure wire is still subject to security policies, which allows you

to apply firewall rules without performing routing or switching.

This solution fits the requirement to have security services between the vSRX instances in different cloud environments without needing L2 connectivity.

Juniper Security Reference:

Secure Wire Overview: Secure Wire allows traffic to pass transparently while still applying security services, which is ideal for situations where Layer 2 connectivity is not possible. Reference: Juniper Secure Wire Documentation.

Correct Answer: D

In an ADVPN (Auto-Discovery VPN) environment with a hub-and-spoke topology, the initial communication between two spokes (Spoke-1 and Spoke-2) is always routed through the hub. Once the hub detects the communication, it facilitates the creation of a direct VPN tunnel between the spokes. Until this dynamic tunnel is established, the traffic between the spokes continues to pass through the hub.

In this scenario, Spoke-1 will route traffic through the hub initially until the direct VPN tunnel to Spoke-2 is established.

Correct Answer: C

Security tags facilitate dynamic traffic management between cloud environments like Azure and AWS. Tags allow flexible policies that respond to cloud-native events or resource changes, ensuring secure inter-cloud communication. For more

information, see Juniper Cloud Security Tags.

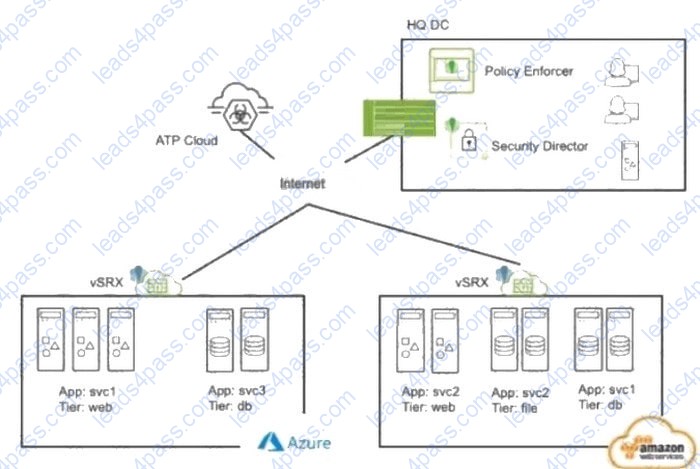

In the scenario depicted in the exhibit, where traffic needs to be dynamically secured between Azure and AWS clouds, the best method to achieve dynamic security is by using security tags in the security policies.

of Answer C (Security Tags in Security Policies):

Security tagsallow dynamic enforcement of security policies based on metadata rather than static IP addresses or zones. This is crucial in cloud environments, where resources and IP addresses can change dynamically. Using security tags

in the security policies, you can associate traffic flows with specific applications, services, or virtual machines, regardless of their underlying IP addresses or network locations. This ensures that security policies are automatically updated as

cloud resources change.

Juniper Security Reference:

Dynamic Security with Security Tags: This feature allows you to dynamically secure cloud-based traffic using metadata and tags, ensuring that security policies remain effective even in dynamic environments. Reference: Juniper Security

Tags Documentation.

Correct Answer: AC

When Ethernet interfaces are configured as Layer 2 and added to the same VLAN without being assigned to a security zone, they will not forward traffic by default. Additionally, because they are operating in a pure Layer 2 switching mode,

they lack the capability to enforce stateful security policies. For further details, refer to Juniper Ethernet Switching Layer 2 Documentation.

of Answer A (Unable to Apply Stateful Security Features):

When two interfaces are configured as Layer 2 interfaces and belong to the same VLAN but are not assigned to any security zone, traffic switched between them is handled purely at Layer 2. Stateful security features , such as firewall

policies, are applied at Layer 3, so traffic between these interfaces will not undergo any stateful inspection or firewalling by default.

of Answer C (Interfaces Will Not Forward Traffic):

In Junos, Layer 2 interfaces must be added to a security zone to allow traffic forwarding. Since the interfaces in this scenario are not part of a security zone, they will not forward traffic by default until assigned to a zone. This is a security

measure to prevent unintended forwarding of traffic.

Juniper Security Reference:

Layer 2 Interface Configuration: Layer 2 interfaces must be properly assigned to security zones to enable traffic forwarding and apply security policies. Reference: Juniper Networks Layer 2 Interface Documentation.

Correct Answer: AC

In an active/active HA environment, the Interchassis Link (ICL) is used primarily for Layer 2 communication between nodes. Encrypting the ICL traffic can enhance security as it carries critical HA state synchronization data. More details can

be found in the Juniper HA Documentation. In an active/active mode multinode HA (High Availability) setup, the Inter-Chassis Link (ICL) plays a crucial role in connecting SRX Series devices to ensure synchronized operation. Here are the

key details:

Layer 2 Interface (Answer A): The ICL operates as a Layer 2 interface, facilitating direct communication between the SRX devices in the HA cluster. This interface is essential for synchronizing session information, firewall states, and

configuration data across the devices.

ICL Traffic Encryption (Answer C): For security purposes, the traffic that passes through the ICL can be encrypted. This is particularly important in environments where the ICL traverses insecure or untrusted networks, ensuring that

synchronization data, including session states and configurations, is protected from interception.

To configure encryption on ICL, use Junos OS commands to establish secure communication channels and IPsec tunnels if necessary, depending on the network design.

Correct Answer: D

Intrusion Detection and Prevention (IDP) services require synchronization between nodes in a multinode HA setup to maintain consistent attack detection and prevention across the network. This ensures seamless failover and accurate threat

mitigation. For more information, see Juniper IDP HA Configuration Guide.

In a multinode HA environment, IDP (Intrusion Detection and Prevention) services must be synchronized between nodes to ensure that the same threat detection and prevention rules are consistently applied across both nodes in the HA

cluster. When IDP is used, the state and configuration of IDP signatures and actions need to be synchronized to ensure that failover or switchover between nodes does not cause discrepancies in security policies and inspection. IDP

Synchronization: The synchronization ensures that both nodes are consistently analyzing traffic for threats and applying the same intrusion prevention mechanisms. If this service is not synchronized, the secondary node might fail to detect

threats after a failover.

Juniper References:

Juniper IDP Synchronization: Explains the importance of synchronizing IDP services across HA nodes to maintain consistent security posture across both devices.

Correct Answer: A

Exception traffic, including management and control plane traffic, is handled by examining host-inbound traffic configurations at the ingress interface and zone. It ensures traffic reaches necessary services like SSH and IKE securely. See

Juniper Host Inbound Traffic Documentation for more.

SRX Series devices handle exception traffic (such as management traffic like SSH, Telnet, DNS queries, etc.) differently than regular transit traffic. Exception traffic is examined based onhost-inbound traffic for the ingress interface and zone .

If traffic is destined for the device itself (e.g., management traffic or routing protocol messages), it must be allowed as host-inbound traffic on both the ingress interface and zone.

Example Command:

bash

Copy code

set security zones security-zone trust host-inbound-traffic system-services ssh

This ensures that traffic destined to the SRX device is inspected based on the ingress interface and zone.

Correct Answer: C

DNS doctoring modifies DNS responses for hosts behind NAT devices, allowing them to receive the correct public IP address for internal resources when queried from the public network. This prevents issues where private IPs are returned

and are not reachable externally. For details, visit Juniper DNS Doctoring Documentation.

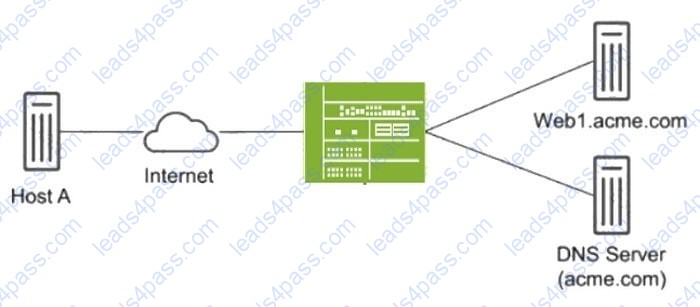

In this scenario, Host A is trying to resolve the domain name web.acme.com , but the DNS resolution returns the private IP address of the web server instead of its public IP. This is a common issue in networks where private addresses are

used internally, but public addresses are required for external clients.

of Answer C (DNS Doctoring):

DNS doctoringis a feature that modifies DNS replies as they pass through the SRX device. In this case, DNS doctoring can be used to replace the private IP address returned in the DNS response with the correct public IP address for Host A.

This allows external clients to reach internal resources without being aware of their private IP addresses.

Configuration Example:

bash

Copy code

set security nat dns-doctoring from-zone untrust to-zone trust

Juniper Security Reference:

DNS Doctoring Overview: DNS doctoring is used to modify DNS responses so that external clients can access internal resources using public IP addresses. Reference: Juniper DNS Doctoring Documentation.
