JN0-104 Online Practice Questions and Answers

Which statement about the show chassis hardware Command is correct?

A. The command provides a list of installed hardware components, including serial numbers and model numbers.

B. The command provides a list of all current hardware utilization statistics and operational status

C. The command provides 2 list of supported hardware components and their current operating status

D. The command provides a list of supported hardware components and environmental thresholds.

Which three benefits are made possible by the separation of the control plane and forwarding plane of a Junos device? (Choose three.)

A. nonstop active routing

B. in-service software upgrades

C. deep packet inspection

D. stateful firewall

E. graceful Routing Engine switchover

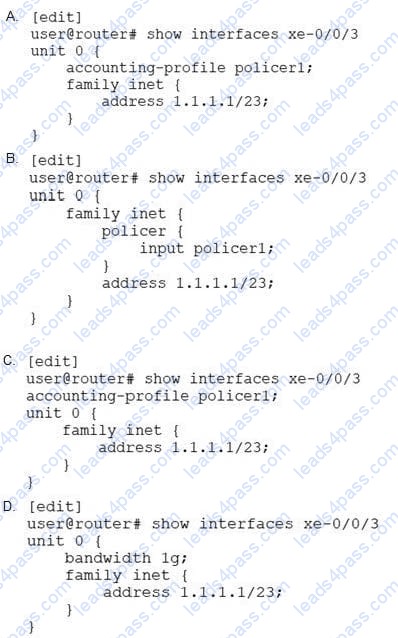

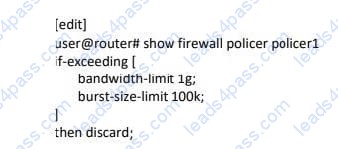

Click the Exhibit Button.

You are asked to limit traffic on interface xe-0/0/3 to 1G using the police shown in the exhibit. Which configuration would accomplish this task?

A. Option A

B. Option B

C. Option C

D. Option D

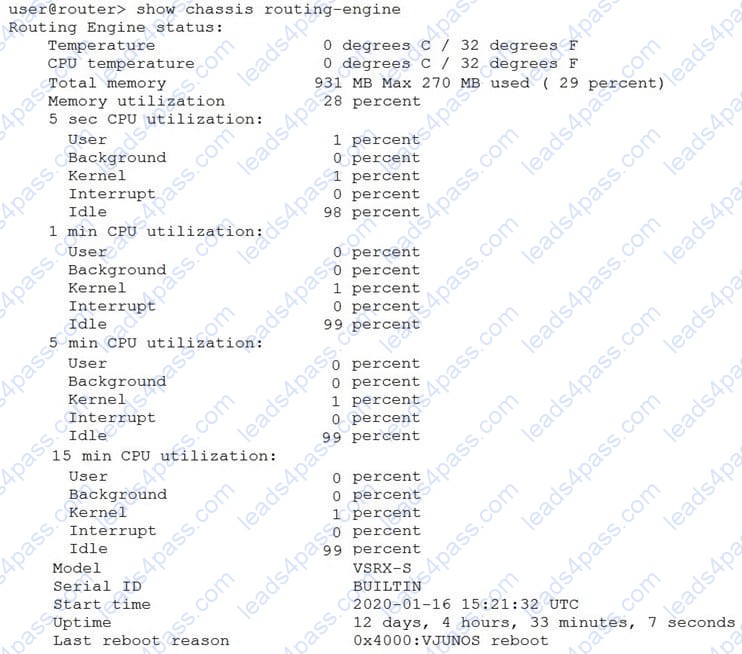

Click the Exhibit button.

Referring to the exhibit, which two statements are correct? (Choose two.)

A. The memory utilization is 28%

B. The memory utilization is 72%

C. The CPU kernel utilization is 1%

D. The 15 minute CPU load average is 99%

Which command causes the Junos OS to temporarily activate a configuration?

A. commit and-quite

B. commit synchronize

C. commit check

D. commit confirmed

Given the configuration shown below: set system authentication-order [tacplus] Which two statement are correct? (Choose two.)

A. If the TACACS+ server is no available, the user is not allowed to access the device.

B. If the TACACS+ server is no available, the local database is checked.

C. If the TACACS+ server is available, and rejects the username/password provided, the local password database is checked.

D. If the TACACS+ server is available, and rejects the username/password provided, the user is not allowed to access the device.

Which source of routing information is preferred by default?

A. static

B. RIP

C. direct

D. BGP

Which two statements describe a routing policy?

A. Active and inactive routes are available for export from the routing table.

B. A routing policy allows you to control the flow of information into the routing table.

C. Routing policy are used to choose which routes are sent to neighbors using dynamic routing Protocols

D. Attribute changes applied to export policies always affect the local routing table

What does the commit check command do?

A. It validates the syntax of a candidate configuration without actually committing the configuration.

B. It commits the configuration when a validation check succeeds.

C. It schedules the commit to a future time.

D. It adds a comment to the messages log.

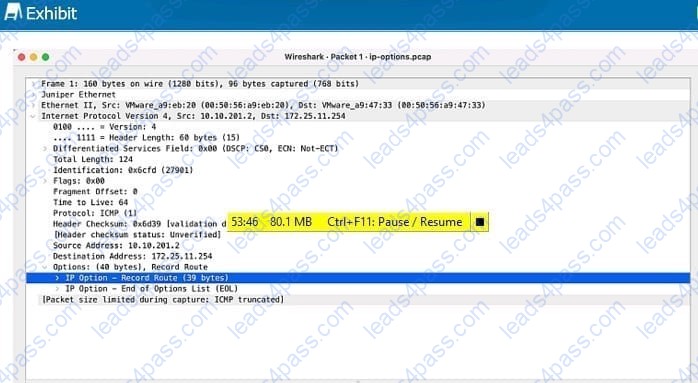

Click the Exhibit button.

What happens if the packet shown in the exhibit is received by a device running Junos OS?

A. The packet is received by the RE first and then redirected to the PFE.

B. The packet is received by the PFE first and then redirected to the RE.

C. The packet is handled by the PFE alone.

D. The packet is handled by the RE alone.
