HPE6-A72 Online Practice Questions and Answers

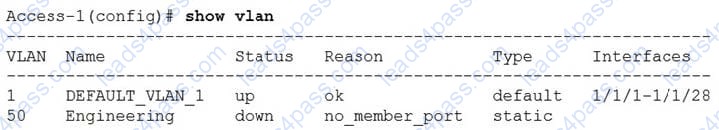

Refer to the exhibit

What is true regarding VLAN 50 according to the diagram above?

A. VLAN 50 is part of a switched virtual interface (SVI) that was never routed causing it to be down.

B. Since VLAN 50 has not been assigned to any enabled physical port, the status is down.

C. VLAN 50 is assigned only to Trunk ports which is why no ports are listed under interfaces.

D. VLAN 50 was never added to the vlan-database and therefore is in a down state.

Which statement is true regarding modern switching requirements?

A. Most older legacy switches had high port bandwidth utilization and were future proof designed to meet today's power-over-Ethernet needs.

B. Requirements for PoE are normally addressed using AC to DC power adapters. Concerns for port security for IoT devices are usually addressed using default wired encryption that all 802.3 Ethernet switches provide.

C. While APs are common, most clients are still docked and only require traditional wired connections with only the occasional dedicated PoE switch to provide power for the low number of devices needed.

D. Clients tend to prefer wireless connections, raising the need for PoE port access. There is also a growing amount of IoT devices that require security and port authentication options.

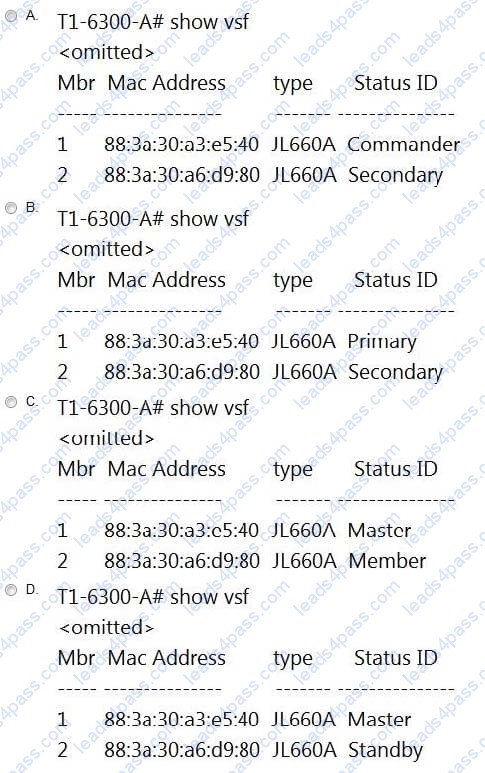

You have completed a successful VSF stack between two switches.

Without manually assigning a backup switch, what is the expected output when issuing a show vsf command?

A. Option A

B. Option B

C. Option C

D. Option D

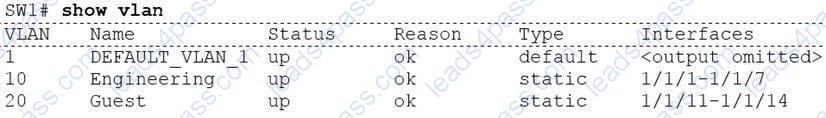

Refer to the exhibit.

The above command was applied to an Aruba AOS-CX 6300M 24-port switch with 4-port SFP56 uplinks. All ports are set as access switchports.

Which ports carry VLAN 1 traffic?

A. 1/1/8, 1/1/10, 1/1/5-1/1/24

B. 1/1/1-1/1/28

C. 1/1/1-1/1/24

D. 1/1/8-1/1/10, 1/1/5-1/1/28

Core(config)# user admin password Core(config)# interface mgmt Core(config-if-mgmt)# ip static 10.254.16.89/22 Core(config-if-mgmt)# default-gateway 10.254.19.129 Core(config)# ssh server vrf mgmt Core(config)# https-server vrf mgmt

You are tasked with configuring the Core switch to be managed by NetEdit. Currently, the Core switch is at factory-default settings.

Which two steps are missing? (Choose two.)

A. Core(config)# https-server rest access-mode read-write

B. Core(config-if-mgmt)# no shutdown

C. Core(config-if-mgmt)# no tftp-server

D. Core(config-if-mgmt)# enable

E. Core(config)# https-server rest access-mode read-only

Which two commands will save the running-config so that changes will be loaded automatically on the next reboot? (Choose two.)

A. write memory

B. save

C. copy config config1 config startup-config

D. copy running-config startup-config

E. copy running-config checkpoint boot-config

Which two options are considered the Layer 2 protocols? (Choose two.)

A. 802.1Q

B. IPSec

C. STP

D. RIP

E. 802.11af

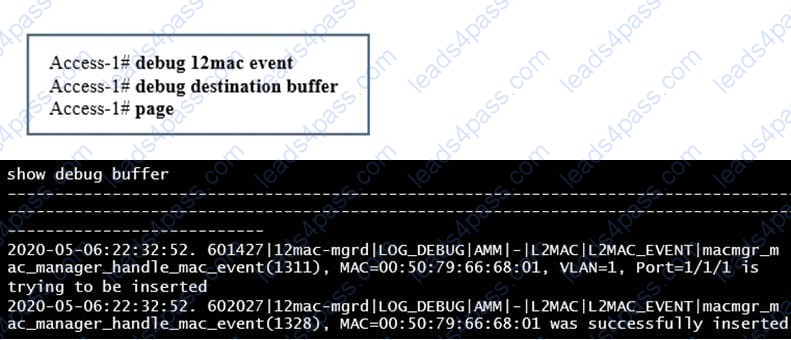

Refer to the exhibit.

What command will display the debug l2mac events?

A. show module L2MAC

B. show debug terminal

C. show debug buffer module L2MAC

D. show debug all

What are two available options as part of a DHCP offer message? (Choose two.)

A. SSID

B. DNS server IP

C. Subnet Mask

D. LLDP-MED

E. VLAN ID

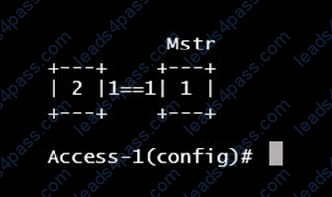

Refer to the exhibit.

What VSF command produces the above output?

A. show vsf member

B. show vsf link

C. show vsf topology

D. show vsf detail
