HP2-Z37 Online Practice Questions and Answers

A company requires switches to use Multiple Spanning Tree Protocol (MSTP) instead of Rapid Spanning Tree Protocol (RSTP), so that the switches can forward traffic on more than one switch-to-switch link. How does the administrator set up the solution to meet this requirement?

A. Configure every switch with a unique bridge priority in the IST, which is also called spanning tree instance 0.

B. Ensure that switches use the 802.3t standard costs instead of the legacy costs.

C. Set the same spanning tree cost on all redundant links on a switch.

D. M different VLANs to different instances, and make a different switch root bridge in each instance.

Which command can a network administrator execute on an HP Comware switch to manage configuration files?

A. delete

B. startup-default

C. write file

D. write memory

Refer to the exhibit.

What can a network administrator determine from the output in the exhibit?

A. The switch will boot the primary software on its next boot.

B. The switch has no software stored in the secondary slot.

C. The switch is using the config file in the primary slot for its startup-config.

D. The switch booted the primary software on its previous boot.

An HP ProVision switch is operating at its factory default settings. A network administrator connects the switch to a VLAN with a DHCP server. The switch-to-switch connection is carrying untagged traffic. The administrator wants to log in to the switch CLI using Telnet.

How should the administrator contact the switch and log in?

A. Contact the switch at its DHCP-assigned IP address and log in with the default password hp.

B. Contact the switch at its default IP address 192.168.1.1/24 and log in without entering a password.

C. Contact the switch at its DHCP-assigned IP address and log in without entering a password.

D. Contact the switch at its default IP address 192.168.1.1/24 and log in with the default password hp.

Which HP software platform provides centralized network management, monitoring, and configuration of wired and wireless network infrastructure devices, as well as traffic monitoring, user management, and other capabilities?

A. HP IntelligentManagement Center (IMC)

B. HP Intelligent Resilient Framework (IRF)

C. HP Virtual Cloud Networking (VCN)

D. HP Virtual Connect FlexFabric

What is the purpose of a management VLAN on an HP Provision switch?

A. To prevent IP addresses from being configured on any VLANs other than the management VLAN

B. To provide an administrative-only marker, label, or alias for the VLAN where IMC is installed

C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface

D. To limit remote access connections by specifying the IP addresses that can establish connections

When adding a new member to an existing IRF domain, which of the following must you perform first?

A. Define the IRF priority.

B. Create the IRF logical port.

C. Define the IRF domain name.

D. Define the IRF member number.

A server connects to a port on an HP Comware switch. The network administrator wants to ensure that:

Which statement describes how the administrator can accomplish this?

A. The administrator must manually configure the port as an STP edge port.

B. The administrator can lower the port's root path cost to zero.

C. The administrator can accept the default behavior of auto-edge.

D. The administrator can configure the port as an MSTP master port.

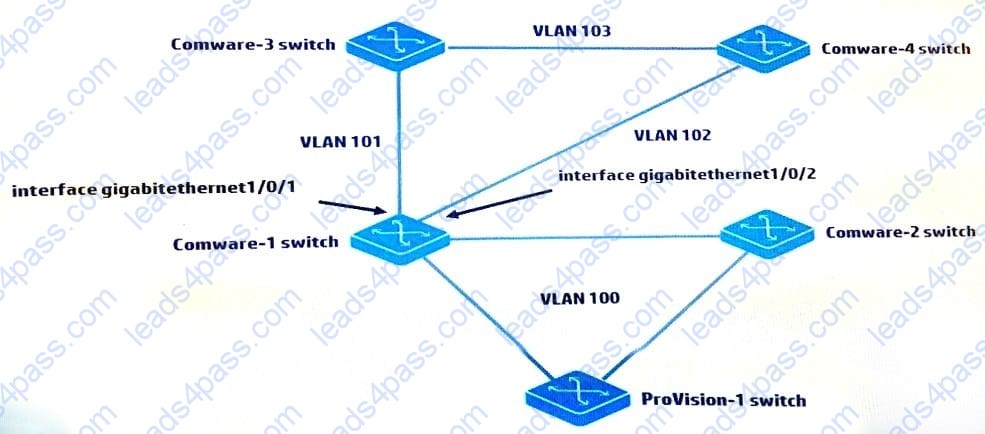

Refer to the exhibit.

MSTP is configured on all switches shown in the exhibit. The Comware-1, Comware-3, and Comware-4 switches are set up for OSPF. Comware-1 and Comware-4 switches fail to achieve neighbor adjacency. The network administrator analyzes the issue and determines that MSTP is blocking on port gigabitethernet1/0/2 on Comware-1.

Which configuration should the administrator configure on ports g1/0/1 and g1/0/2 to allow Comware-1 to form the correct OSPF adjacencies with Comware-3 and Comware-4?

A. interface g1/0/1spanning-tree bpdu-filterquitinterface g1/0/2spanning-tree bpdu-filterquit

B. interface g1/0/1undo stp enablequitinterface g1/0/2undo stp enablequit

C. interface g1/0/1stp link-mode routequitinterface g1/0/2stp link-mode routequit

D. interface g1/0/1stp bpdu-filterquitinterface g1/0/2stp bpdu-filterquit

In the HP Software-defined Networking (SDN) architecture, what connects the Application layer to the physical device or Infrastructure layer?

A. HP Network Automation

B. HP SDN Controller

C. HP IMC Virtual Network Manager (VNM)

D. HP IMC SDN Manager
