HP2-Z34 Online Practice Questions and Answers

How does a non-hierarchical VPLS Martini solution prevent looping for broadcasts and multicasts?

A. PEs use a hub and spoke topology, relying on the hub to distribute broadcasts and multicasts.

B. PEs use split horizon operations, never forwarding a packet received on a pseudo wire (PW) over another PW.

C. PEs implement Shortest Path Bridging (SPB) VLAN Mode (SPBV).

D. PEs implement a version of Spanning Tree Protocol (STP). preferably Multiple STP (MSTP).

A large data center needs to extend its Layer 2 connectivity and isolate tenants who might use the same VLAN IDs Which technology accomplishes this goal?

A. SPBM

B. Data Center Bridging (DCB)

C. Multi-VPN-Instance CE (MCE)

D. TRILL

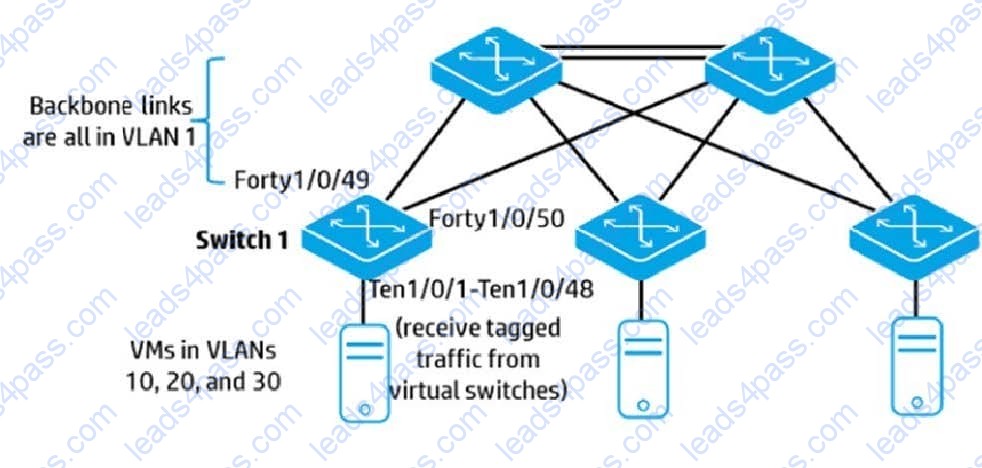

Refer to the exhibit The company wants to use TRILL in the backbone links shown in the exhibit. Servers use VLANs 10, 20, and 30 and should be able to communicate across the backbone. On which Switch 1 interfaces should the administrator enable TRILL?

A. VLAN interface 1 only

B. VLAN interfaces 1,10, 20, and 30

C. interfaces Forty1/0/49 and Forty1/0/50 only

D. interfaces Ten1/0/1 to Ten1/0/48, and Forty1/0/49 and Forty1/0/50

Which advantage does a VPLS solution offer over a simple MPLS Layer 2 VPN solution?

A. provides data integrity and privacy for the company traffic

B. provides MAC learning for VLANs extended across the MPLS region

C. allows for a hub and spoke pseudo wire (PW) configuration instead of a full mesh configuration

D. extends Layer 2 connectivity across an IP network that uses non-Ethernet media

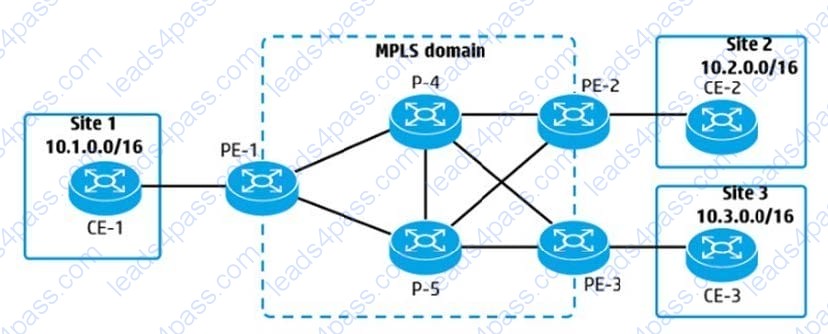

Refer to the exhibit

An administrator is planning an MPLS solution and wants to make sure that traffic from 10.1.0.0716 to 10.2 0.0/16 takes the best path. The solution is not using Traffic Engineering (TE). How does PE-1 choose between the label advertised for 10.2.0.0/16 by P-4 and by P-5?

A. based on which peer is the higher priority LDP peer

B. based on which peer is the next hop in the best route in the IP routing table

C. based on which link has the lower LDP cost

D. based on which link has the lower MPLS cost

An administrator is implementing MDC and wants to create a redundant solution where each MDC uses two physical HP Comware switches. What is the correct setup process?

A. Set up the MDCs on both switches. Configure Intelligent Resilient Framework (IRF) between the two switches on each MDC separately.

B. Combine the two switches in an Intelligent Resilient Framework (IRF) virtual device Set up the MDCs on this device.

C. Set up the MDCs on both switches. Use the Admin MDC to configure Intelligent Resilient Framework (IRF) on the two switches

D. Enable MDC on both switches in resiliency mode Configure the MDCs on each device using the same MDC IDs on each Connect the devices.

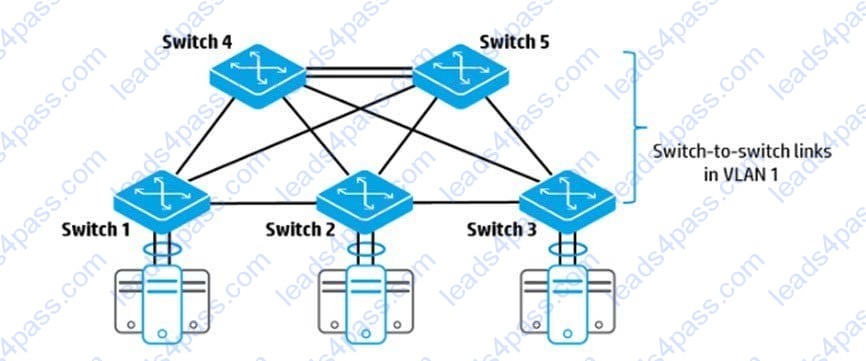

Refer to the exhibit

An administrator wants these switches to establish a TRILL region TRILL is enabled globally and nicknames are set. What must the administrator do so that each TRILL switch (RBridge) finds the best path to all other TRILL switches?

A. Configure IS-IS on VLAN 1 on all the switches.

B. Enable TRILL with the correct link-type on each switch-to-switch port

C. Configure DRB priorities on all switch-to-switch links.

D. Create a Virtual Service Instance (VSI) on each switch and define the other switches as TRILL peers.

What is the relationship between a Forwarding Equivalence Class (FEC) and the MPLS label that a Label Switching Router (LSR) advertises for that FEC?

A. An LSR assigns the same label to FECs with the same best next hop: labels remain constant across the MPLS domain

B. The LSR assigns a unique label to each FEC, but labels assigned by different LSRs do not necessarily match.

C. The LSR assigns a unique label to each FEC. and that label remains constant across the MPLS domain

D. An LSR assigns the same label to FECs with the same best next hop; labels assigned by different LSRs do not necessarily match

Which statement is correct about a Fibre Channel (FC) World Wide Name (WWN)?

A. It is a hardware specific address for a LUN on a storage disk and can be used to direct FC frames to targets.

B. It is a hardware specific address for an FC device and can be used to place the device in zones.

C. It is assigned to an FC device based on its location and can be used to deliver FC frames

D. It is assigned to an FC N-port as its switch joins the fabric and can be used to route FC frames

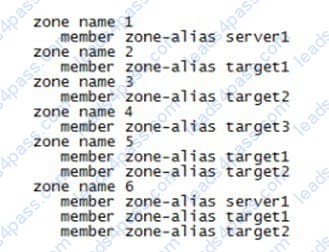

Refer to the exhibit An HP Comware switch is configured to support FCoE in Fibre Channel Forwarder (FCF) mode. Serverl should be able to discover storage targetl and target2. but not target3. Assume that the zone-aliases have been configured to reference the FC devices correctly

Which zone(s) should be added to the active zoneset?

A. zone 1, zone 2, and zone 3

B. zone 1 and zone 5

C. zone 4

D. zone 6
