HP2-Z32 Online Practice Questions and Answers

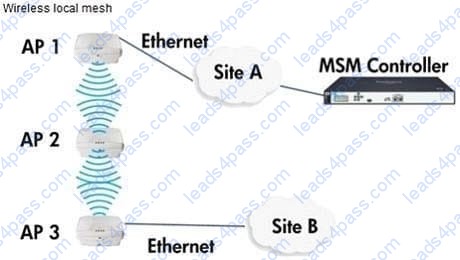

Refer to the exhibit.

A network administrator needs to configure a local mesh between the three APs shown in the exhibit. The network administrator configured AP1 for the master role. What are valid roles for AP 2 and AP 3?

A. 2 = Alternate Master; 3 - Slave

B. 2 = Slave; 3 = Alternate Master

C. 2 = Slave; 3 = Master

D. 2 = Slave; 3 = Slave

An MSM administrator creates an access-controlled VSC, which is not the default VSC, on a standalone MSM Controller The controller should implement DHCP relay on this VSC; clients will receive IP addresses from an external DHCP server The DHCP scope for the clients uses 192.168.1.0/24 and sets the default gateway to 192.168.1.1. The 192.168.1.0/24 subnet is reserved for the wireless clients and does not exist in the LAN.

Which requirement applies to this scenario?

A. The guests must log into a web page hosted on an external server to authenticate on this VSC.

B. The 192.168.1.0/24 subnet must be configured on the controllers LAN port.

C. The DHCP server, or its default gateway, needs a route to 192.168.1.0/24 through the MSM Controller.

D. The APs that support this VSC must receive IP addresses from the same DHCP server as the clients.

The MSM APs in an MSM solution are configured to use Automatic Channel Selection (ACS) on their 2.4 GHz radios. Which adjustment would cause the ACS to function more efficiently?

A. Enabling channel bonding

B. Selecting all of the channels that are allowed in the corresponding country and area

C. Excluding all channels except the three channels that are valid for the environment

D. Configuring ACS to run multiple times per day

When should a company deploy HP M111 Client Bridges?

A. when the company has legacy devices that support Ethernet, but the devices need to connect to 802.11g APs

B. when the company wants to deploy APs that support 802.11n in the 5 GHz band, though some client devices only support the 2.4 GHz band

C. when the company needs to monitor client transmissions as part of an integrated wireless intrusion detection system/intrusion prevention system (IDS/IPS)

D. when the company has multiple small sites that require only one AP to provide coverage but need that AP to support guest services locally

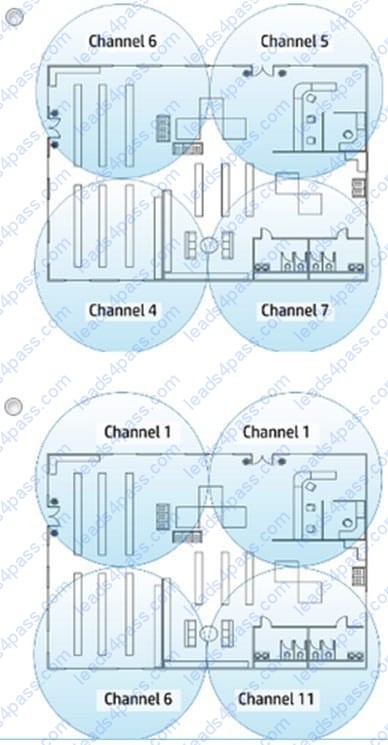

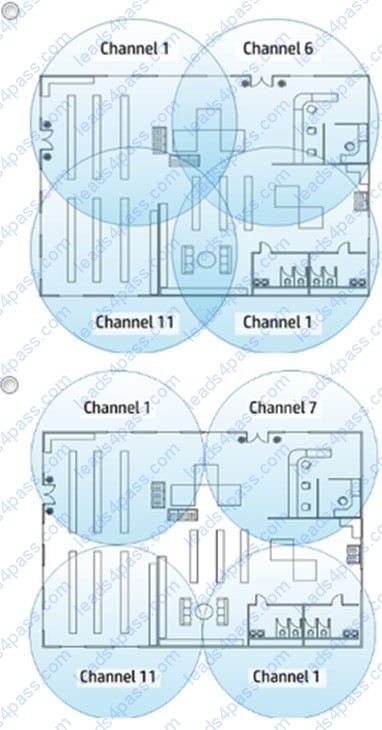

Which cell plan is designed property to minimize interference and enable seamless roaming?

A. Exhibit A

B. Exhibit B

C. Exhibit C

D. Exhibit D

What are the two types of Local Mesh configurations?

A. Autonomous, controlled

B. Static, dynamic

C. Short distance, long distance

D. Indoor, outdoor

You have decided to limit access to the management GUI to clients on your local network. This requires you to select which item from Active interfaces on your Management screen?

A. VPN

B. LAN port

C. Internet port

D. VLAN/GRE item

Common settings (such as the IP address) for all ports on an MSM access point are represented by a port name. What is this port called?

A. Common

B. Global

C. Switch

D. Bridge

Users report that the 802.11n wireless network is extremely slow. The network administrator suspects that the problem is occurring because of a hidden node.

Which mechanism is a solution for this problem?

A. Short Guard Interval (SGI)

B. Reduced Inter-Frame Spacing (RIFS)

C. CTS-to-Self

D. Carrier sense multiple access with collision avoidance (CSMA/CA)

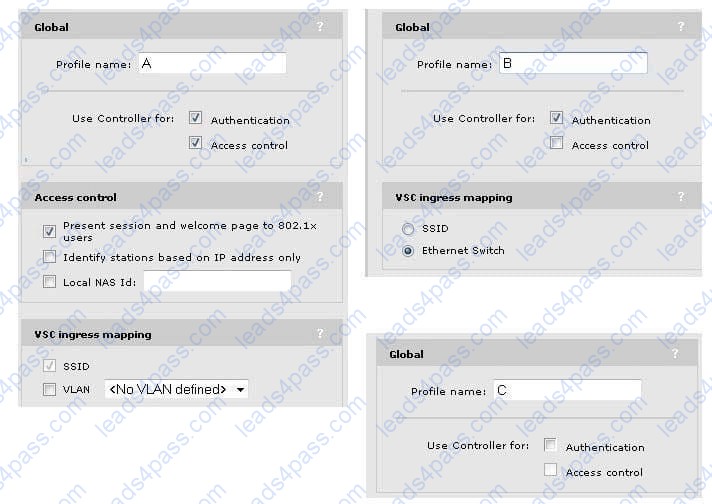

Refer to the exhibit.

Portion of the settings for VSC profile A VSC profile B and VSC profile C. A network administrator is deploying an HP MSM solution for a hotel. The solution consists of an HP MSM760 Access Controller, 50 HP MSM317 Access Devices, and several HP SMS460 Aps. The hotel plans to connect voice over IP (VoIP) phones to port 1 on each HP MSM317. To protect the ports from unauthorized access, the network administrator will configure the ports to support MAC authentication to accounts configured on the controller. The exhibit shows a portion of the settings for three VSCs Each VSC is enabled for MAC authentication.

How can the network administrator configure port 1 on the MSM317s to meet this requirement?

A. Configure switch port 1 at the controlled Aps level and bind VSC A to it.

B. Configure switch port 1 at the controlled Aps level and bind VSC B to it.

C. Configure switch port 1 at the controlled Aps level and bind VSC C to it.

D. Configure switch port 1 at the controlled Aps level and enable MAC authentication on it.
