CKS Online Practice Questions and Answers

Correct Answer: A

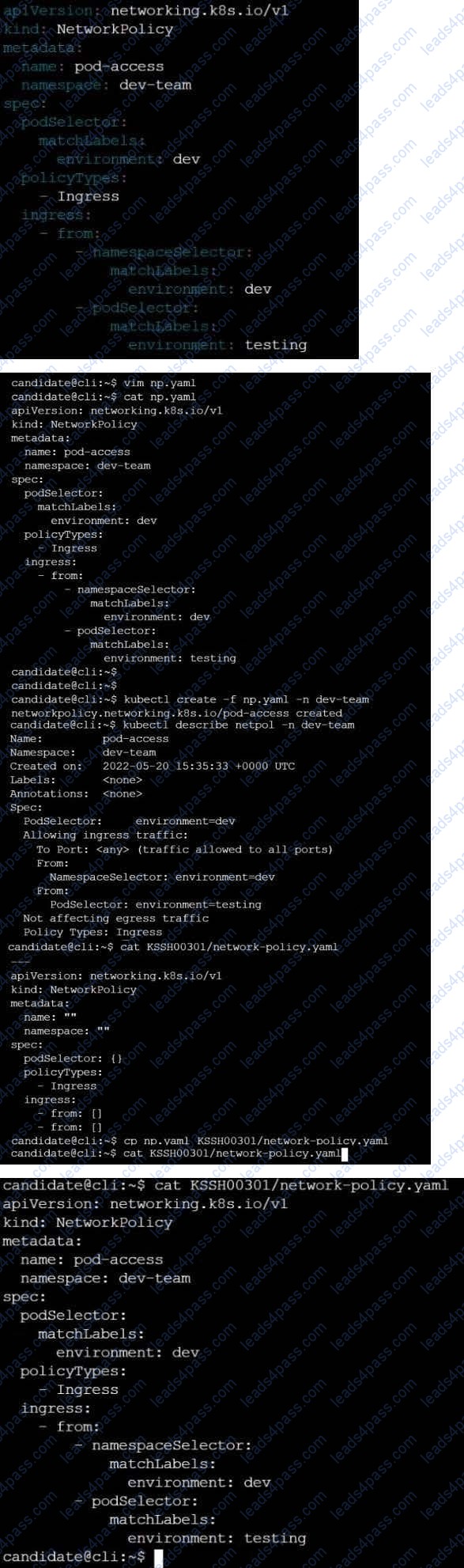

apiVersion: networking.k8s.io/v1

kind: NetworkPolicy

metadata:

name: network-policy

spec:

podSelector: {} #selects all the pods in the namespace deployed policyTypes:

-Ingress ingress:

-ports: #in input traffic allowed only through 80 port only

-protocol: TCP port: 80

Correct Answer: A

Correct Answer: A

Fix all of the following violations that were found against the API server:

a. Ensure that the RotateKubeletServerCertificate argument is set to true.

apiVersion: v1 kind: Pod metadata: creationTimestamp: null labels: component: kubelet tier: control-plane name: kubelet namespace: kube-system spec: containers:

-command:

-kube-controller-manager + - --feature-gates=RotateKubeletServerCertificate=true image: gcr.io/google_containers/kubelet-amd64:v1.6.0 livenessProbe: failureThreshold: 8 httpGet: host: 127.0.0.1 path: /healthz port: 6443 scheme: HTTPS initialDelaySeconds: 15 timeoutSeconds: 15 name: kubelet resources: requests: cpu: 250m volumeMounts:

-

mountPath: /etc/kubernetes/ name: k8s readOnly: true

-

mountPath: /etc/ssl/certs name: certs

-

mountPath: /etc/pki name: pki hostNetwork: true volumes:

-

hostPath: path: /etc/kubernetes name: k8s

-

hostPath: path: /etc/ssl/certs name: certs

-

hostPath: path: /etc/pki name: pki

b.

Ensure that the admission control plugin PodSecurityPolicy is set.

audit: "/bin/ps -ef | grep $apiserverbin | grep -v grep"

tests:

test_items:

-flag: "--enable-admission-plugins"

compare:

op: has

value: "PodSecurityPolicy"

set: true

remediation: |

Follow the documentation and create Pod Security Policy objects as per your environment.

Then, edit the API server pod specification file $apiserverconf

on the master node and set the --enable-admission-plugins parameter to a

value that includes PodSecurityPolicy :

--enable-admission-plugins=...,PodSecurityPolicy,...

Then restart the API Server.

scored: true

c. Ensure that the --kubelet-certificate-authority argument is set as appropriate. audit: "/bin/ps -ef | grep $apiserverbin | grep -v grep"

tests: test_items:

-flag: "--kubelet-certificate-authority"

set: true

remediation: |

Follow the Kubernetes documentation and setup the TLS connection between the

apiserver and kubelets. Then, edit the API server pod specification file

$apiserverconf on the master node and set the --kubelet-certificate-authority

parameter to the path to the cert file for the certificate authority.

--kubelet-certificate-authority=

scored: true

Fix all of the following violations that were found against the ETCD:

a.

Ensure that the --auto-tls argument is not set to true Edit the etcd pod specification file $etcdconf on the masternode and either remove the -- auto-tls parameter or set it to false.--auto-tls=false

b.

Ensure that the --peer-auto-tls argument is not set to true

Edit the etcd pod specification file $etcdconf on the masternode and either remove the -- peer-auto-tls parameter or set it to false.--peer-auto-tls=false

Correct Answer: A

Correct Answer: A

1.

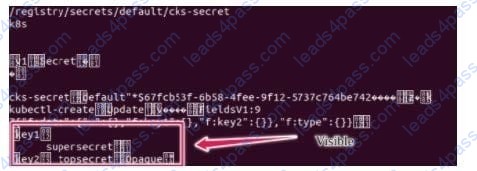

ETCD secret encryption can be verified with the help of etcdctl command line utility.

2.

ETCD secrets are stored at the path /registry/secrets/$namespace/$secret on the master node.

3.

The below command can be used to verify if the particular ETCD secret is encrypted or not.

# ETCDCTL_API=3 etcdctl get /registry/secrets/default/secret1 [...] | hexdump -C

Correct Answer: A

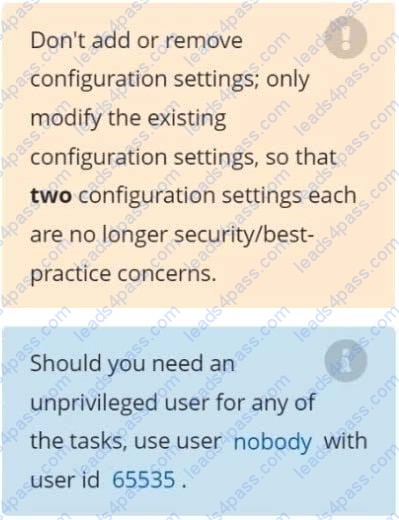

1. For Dockerfile: Fix the image version and user name in Dockerfile2. For mydeployment.yaml : Fix security contexts

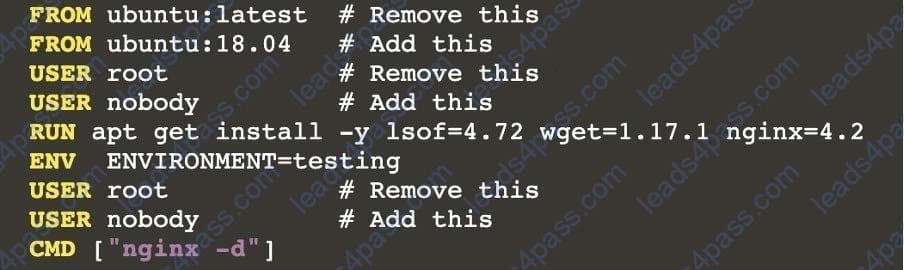

Explanation[desk@cli] $ vim /home/cert_masters/Dockerfile FROM ubuntu:latest # Remove this FROM ubuntu:18.04 # Add this USER root # Remove this USER nobody # Add this RUN apt get install -y lsof=4.72 wget=1.17.1 nginx=4.2 ENV ENVIRONMENT=testing USER root # Remove this USER nobody # Add this CMD ["nginx -d"]

Text

[desk@cli] $ vim /home/cert_masters/mydeployment.yaml

apiVersion: apps/v1

kind: Deployment

metadata:

creationTimestamp: null

labels:

app: kafka

name: kafka

spec:

replicas: 1

selector:

matchLabels:

app: kafka

strategy: {}

template:

metadata:

creationTimestamp: null

labels:

app: kafka

spec:

containers:

-image: bitnami/kafka

name: kafka

volumeMounts:

-

name: kafka-vol

mountPath: /var/lib/kafka

securityContext:

{"capabilities":{"add":["NET_ADMIN"],"drop":["all"]},"privileged":

True,"readOnlyRootFilesystem": False, "runAsUser": 65535} # Delete This {"capabilities":{"add":["NET_ADMIN"],"drop":["all"]},"privileged":

False,"readOnlyRootFilesystem": True, "runAsUser": 65535} # Add This resources: {}

volumes:

-

name: kafka-vol

emptyDir: {}

status: {}

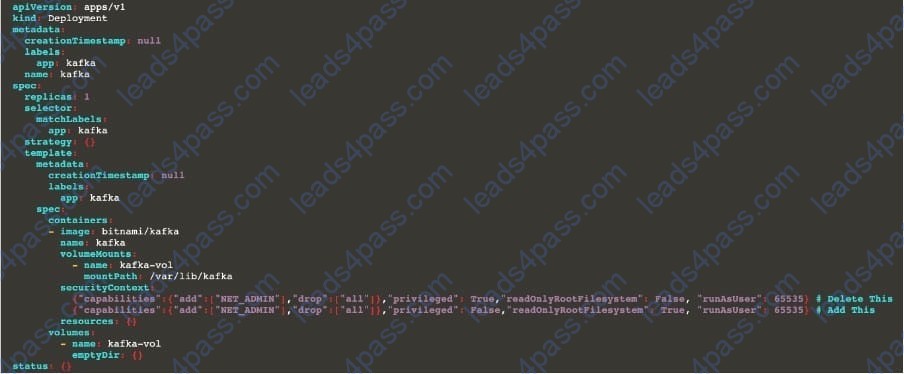

Pictorial View:[desk@cli] $ vim /home/cert_masters/mydeployment.yaml

Correct Answer: A

Correct Answer: A

Correct Answer: A

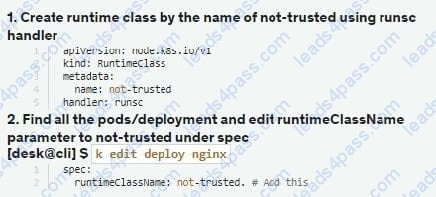

1.

apiVersion: node.k8s.io/v1

2.

kind: RuntimeClass

3.

metadata:

4.

name: not-trusted

5.

handler: runsc [desk@cli] $ k apply -f runtime.yaml[desk@cli] $ k get pods

1.

NAME READY STATUS RESTARTS AGE

2.

nginx-6798fc88e8-chp6r 1/1 Running 0 11m

3.

nginx-6798fc88e8-fs53n 1/1 Running 0 11m

4.

nginx-6798fc88e8-ndved 1/1 Running 0 11m [desk@cli] $ k get deploy

1.

NAME READY UP-TO-DATE AVAILABLE AGE

2.

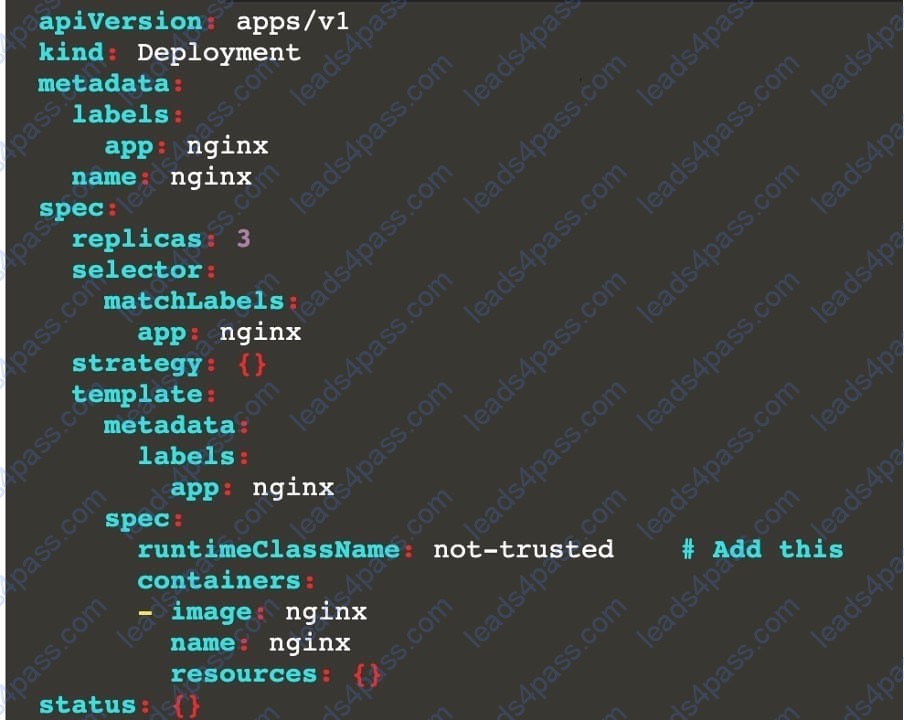

nginx 3/3 11 3 5m [desk@cli] $ k edit deploy nginx

[desk@cli] $vim runtime.yaml

Correct Answer: A

Kubernetes auditing provides a security-relevant chronological set of records about a cluster. Kube-apiserver performs auditing. Each request on each stage of its execution generates an event, which is then pre-processed according to a

certain policy and written to a backend. The policy determines what's recorded and the backends persist the records. You might want to configure the audit log as part of compliance with the CIS (Center for Internet Security) Kubernetes

Benchmark controls.

The audit log can be enabled by default using the following configuration in cluster.yml:

services:

kube-api:

audit_log:

enabled: true

When the audit log is enabled, you should be able to see the default values at /etc/kubernetes/audit-policy.yaml

The log backend writes audit events to a file in JSONlines format. You can configure the log audit backend using the following kube-apiserver flags:

--audit-log-path specifies the log file path that log backend uses to write audit events. Not specifying this flag disables log backend. - means standard out --audit-log-maxage defined the maximum number of days to retain old audit log files

--audit-log-maxbackup defines the maximum number of audit log files to retain

--audit-log-maxsize defines the maximum size in megabytes of the audit log file before it gets rotated

If your cluster's control plane runs the kube-apiserver as a Pod, remember to mount the hostPath to the location of the policy file and log file, so that audit records are persisted.

For example:

--audit-policy-file=/etc/kubernetes/audit-policy.yaml \

--audit-log-path=/var/log/audit.log
