ACMP_6.3 Online Practice Questions and Answers

Which dual radio access point models support concurrent operations in the 2.4Ghz band as well as the 5Ghz band? (Choose three)

A. AP-92

B. AP-93

C. AP-105

D. AP-224

E. AP-135

Refer to the following configuration segment for this item.

ip access-list session anewone user network 172.16.1.0 255.255.255.0 any permit user host 172.16.1.1 any deny user any any permit

An administrator wants users to have access to all destinations except 172.16.1.1. Based on the above Aruba Mobility Controller configuration segment, which statements best describe this policy? (Choose two)

A. The rule user host 172.16.1.1 any deny is redundant because of the implicit deny all at the end.

B. The rule user network 172.16.1.0 255.255.255.0 any permit is redundant.

C. The two rules user network 172.16.1.0 255.255.255.0 any permit and user host 172.16.1.1 any deny need to be re-sequenced.

D. The last statement user any any permit is not required

E. The last statement should be any any any deny

Which of these are NOT a client attribute that can be configured in user derivation rules?

A. MAC address

B. DHCP option value

C. BSSID

D. Filter ID

E. encryption

A user connected to a Captive Portal VAP successfully. When the user opens their browser and tries to access their homepage, they get redirected as expected to another URL on the Aruba Controller. However, they see an error message that web authentication has been disabled. What might be a cause of this?

A. Captive Portal has not been assigned in the SSID profile.

B. The Captive portal profile has not been assigned to the AAA profile.

C. A server group has not been assigned to the captive portal profile.

D. An initial role has not been assigned to the AAA profile.

E. The Captive portal profile has not been assigned to the initial role.

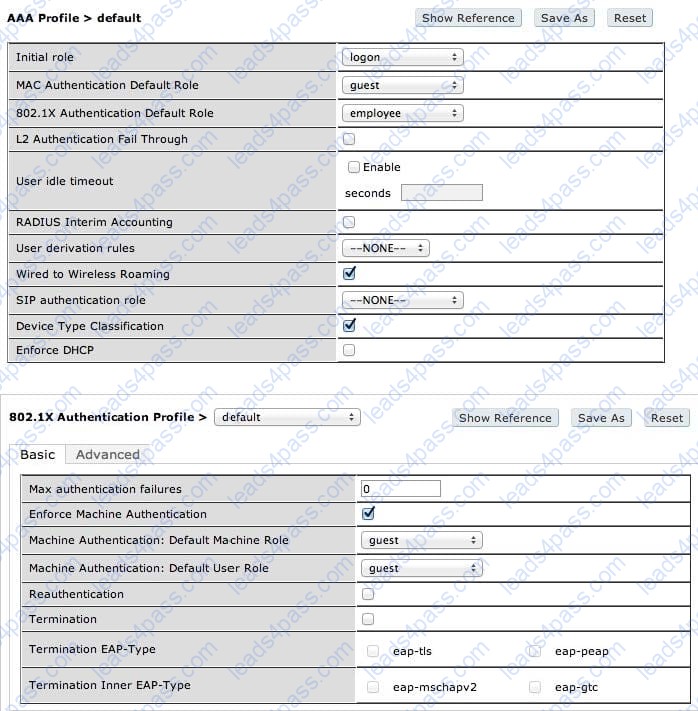

The screen captures above show the 802.1X authentication profile and AAA profile settings for a VAP.

If machine authentication passes and user authentication fails, which role will be assigned?

A. employee

B. guest

C. contractor

D. logon

E. no role is assigned

What are the Airtime Allocation Policy options for Airtime Fairness? (Choose three)

A. Default Access

B. Priority Access

C. Fair Access

D. Preferred Access

E. Distributed Access

How is an AP redirected to a Local controller after DNS resolution returns the Master's IP address?

A. Master looks at the AP-Group and CONTROLLER-IP attributes

B. Master looks at the AP-Group and LMS-IP attributes

C. In the AP-provisioning screen, the LMS-IP attribute must be set

D. The AP must be statically configured to find the local controller

E. In the AP-provisioning screen, set the CONTROLLER-IP attribute

With Fast-Failover disabled, to which IP address should the Aruba AP terminate its GRE tunnel for layer 2 controller redundancy to work and to support failover of access points?

A. VRRP IP address

B. management IP of an Aruba controller

C. management IP of the backup Aruba controller

D. HSRP IP address

E. Loopback IP address of backup Aruba controller

An Aruba controller is configured with the correct IP address and gateway information and is connected to the corporate LAN via a core layer 2 switch. Control Plane Security is not enabled on the network. An access point is provisioned with AP name and group and connected to a different Layer 2 switch on the corporate LAN that has IP connectivity to the core layer 2 switch. The AP powers on and layer 2 connects to the network, but the wireless radios do not power on.

Which could cause this condition? (Choose two)

A. the layer 2 switches have ACLs that block GRE traffic

B. the layer 2 switches are configured to block IPSec traffic

C. a DHCP server is not configured for the segment to which the AP is connected

D. the AP's mac address needs to be configured in the Aruba controller whitelist.

E. the AP and controller are in different subnets

What is the purpose of Mesh Clusters?

A. To separate Mesh points from Mesh Portals.

B. To ensure that mesh APs with the same VAPs are not in the same cluster.

C. To define a group of mesh APs that create mesh links with each other.

D. To cluster mesh APs of the same model together.

E. To enable mesh APs to join the nearest mesh portal cluster.
