300-430 Online Practice Questions and Answers

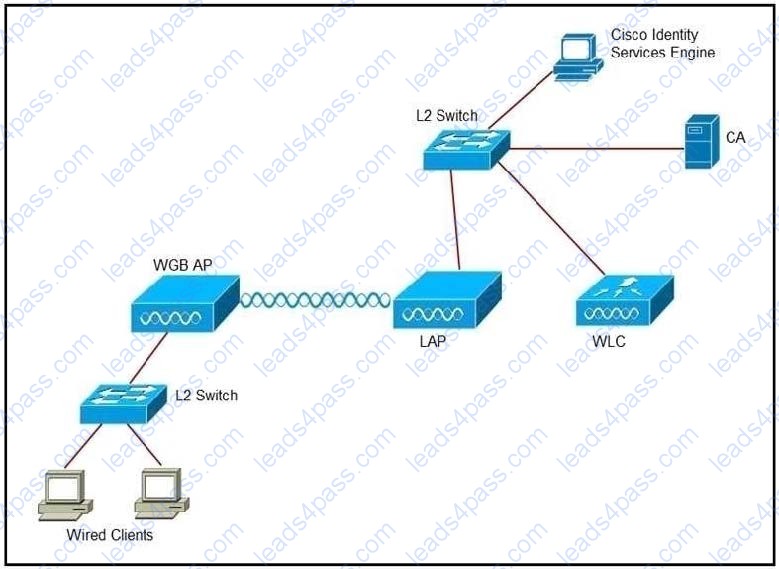

Refer to the exhibit.

An engineer must connect a fork lift via a WGB to a wireless network and must authenticate the WGB certificate against the RADIUS server. Which three steps are required for this configuration? (Choose three.)

A. Configure the certificate, WLAN, and radio interface on WGB.

B. Configure the certificate on the WLC.

C. Configure WLAN to authenticate using ISE.

D. Configure the access point with the root certificate from ISE.

E. Configure WGB as a network device in ISE.

F. Configure a policy on ISE to allow devices to connect that validate the certificate.

An engineer configures a Cisco Aironet 600 Series OfficeExtend AP for a user who works remotely. What is configured on the Cisco WLC to allow the user to print a printer on his home network?

A. split tunneling

B. SE-connect

C. FlexConnect

D. AP failover priority

An engineer is following the proper upgrade path to upgrade a Cisco AireOS WLC from version 7.3 to 8.9. Which two ACLs for Cisco CWA must be configured when upgrading from the specified codes? (Choose two.)

A. Permit 0.0.0.0 0.0.0.0 UDP any any

B. Permit 0.0.0.0 0.0.0.0 any DNS any

C. Permit 0.0.0.0 0.0.0.0 UDP DNS any

D. Permit 0.0.0.0 0.0.0.0 UDP any DNS

E. Permit any any any

A Cisco CMX 3375 appliance on the 10.6.1 version code counts duplicate client entries, which creates wrong location analytics. The issue is primarily from iOS clients with the private MAC address feature enabled. Enabling this feature requires an upgrade of the Cisco CMX 3375 appliance in a high availability pair to version 10.6.3. SCP transfers the Cisco CMX image, but the upgrade script run fails. Which configuration change resolves this issue?

A. Upgrade the high availability pair to version 10.6.2 image first and then upgrade to version 10.6.3.

B. Save configuration and use the upgrade script to upgrade the high availability pair without breaking the high availability.

C. Break the high availability using the cmxha config disable command and upgrade the primary and secondary individuality.

D. Run root patch to first upgrade to version 10.6.2 and then migrate to version 10.6.3.

A network administrator managing a Cisco Catalyst 9800-80 WLC must place all iOS connected devices to the guest SSID on VLAN 101. The rest of the clients must connect on VLAN 102 to distribute load across subnets. To achieve this configuration, the administrator configures a local policy on the WLC.

Which two configurations are required? (Choose two.)

A. Allow HTTP and DHCP profiling under policy map.

B. Enable device classification on global wireless settings

C. Add local profiling policy under global security policy settings

D. Assign a policy map under global security policy settings

E. Create a service template

Refer to the exhibit.

An engineer must provide a position of rogue APs on a floor map using Cisco PI 3.0, but no rogue AP options are showing on the left-hand navigation menu under Maps. What is the reason for this omission?

A. An assurance license is not installed.

B. The controller operational status background task is disabled.

C. The Show Detected Interferers feature under the AP option is disabled.

D. Cisco MSE has not been added to Cisco PI.

A network administrator just completed the basic implementation of Cisco CMX and tries to implement location tracking. The administrator is having trouble establishing connectivity between one of the WLCs through NMSP. What must be configured to establish this connectivity? (Choose two.)

A. Add permanent licenses on the Cisco CMX server.

B. Allow on the firewall port 16113 between Cisco CMX and the WLC.

C. Enable NMSP on the WLC.

D. Reboot Cisco CMX after adding the WLC for the first time.

E. Add to the WLC the MAC address and SSC key for the Cisco CMX server.

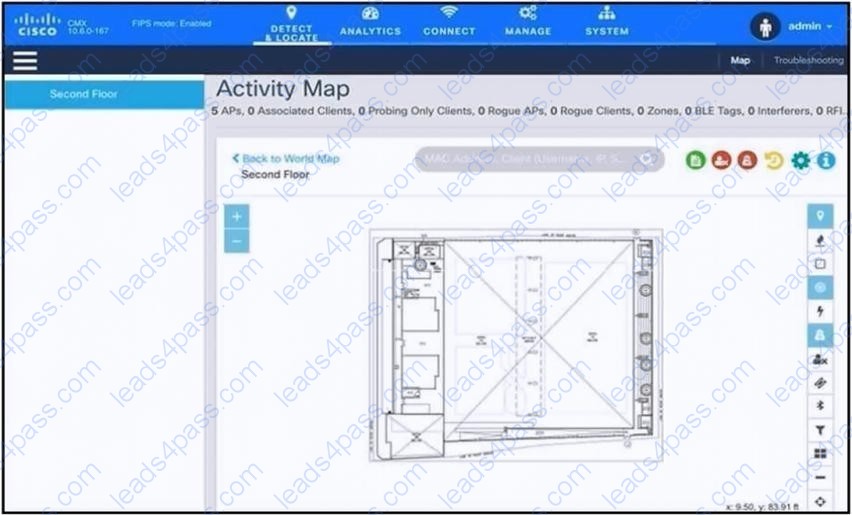

Refer to the exhibit.

An engineer has deployed the Cisco CMX solution to track and detect the number of users who visit the office each day. The CMX dashboard is not showing any data. Which action resolves this issue?

A. Configure Single Sign-On authentication.

B. Add the WLCs to CMX.

C. Copy the exported Maps from CMX server to PI using SCP.

D. Install an evaluation license to CMX server.

Which Cisco Prime Infrastructure report does an engineer run to troubleshoot client connectivity issues for a VoWiFi network?

A. Up/Down Statistics

B. Traffic Stream Metrics

C. Airtime Fairness Statistics

D. 802.11 Counters

Clients on access points within an AP group are not receiving multicast traffic after roaming to another AP within the AP group. Which action maintains multicast connectivity?

A. Enable a unique NAS-ID for the AP group.

B. Enable NAC out-of-band support.

C. Enable IGMP snooping.

D. Enable an ACL on the router that serves the VLAN or subnet.
