1Y0-403 Online Practice Questions and Answers

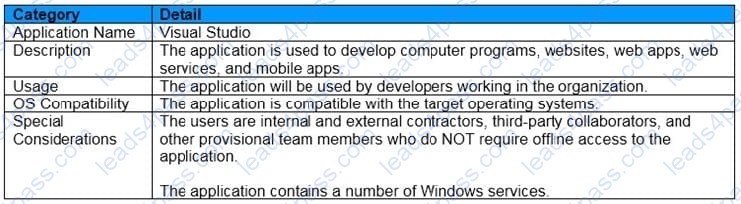

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The customer previously installed all applications locally on managed laptops and desktops, but is willing to evaluate other application delivery methods as part of the new deployment. The environment will be standardized on Windows 10 for the Virtual Delivery Agent (VDA) machines.

As part of an application analysis performed earlier in the project, the information in the exhibit was collected regarding 1 of the required applications.

Click the Exhibit button to view the information.

The customer's security policies mandate that all development software must run within the corporate data center, but should appear to the user as if it is running locally on the virtual machine (VM).

How should the architect recommend deploying the application?

A. Use Desktop OS machines to deliver VM hosted applications.

B. Install it directly on the endpoint devices, and include it in a virtual desktop session using the Local App Access feature.

C. Install it in an Application Layer using Citrix App Layering, then present it to users as an Elastic Layer during a virtual a virtual desktop session.

D. Stream it to a VDA machine using Microsoft App-V, and access it through a virtual desktop session.

E. Push it to users with a Workspace Environment Management (WEM) action option.

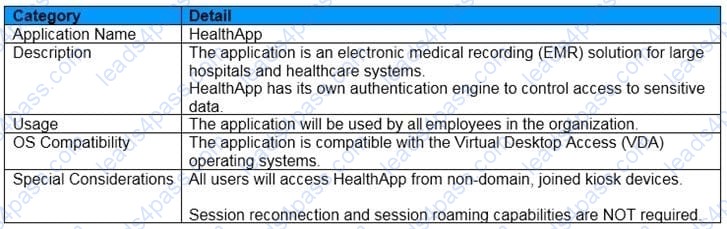

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Based on some initial discussions about the business goals and objectives of the company, the architect collected the information shown in the exhibit.

Click the Exhibit button to view the information.

What should the architect recommend to meet customer requirements?

A. Have users connect to an unauthenticated store through the Citrix Workspace app for Web sites.

B. Have users connect to an authenticated store through Citrix Workspace app for Web sites.

C. Have users connect using a Desktop Appliance site created in the StoreFront console.

D. Have users connect to an authenticated store through the Citrix Virtual Apps Services URL.

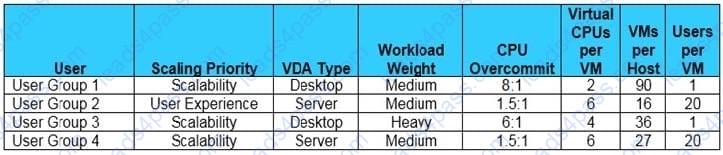

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment.

The table in the exhibit lists details about the requirements of the current user groups and their Virtual

Delivery Agent (VDA) machine workloads.

Click the Exhibit button to view the table.

The architect should scale the hardware used to host the virtual machines (VMs) for User Group 1 to ________ cores. (Choose the correct option to complete the sentence.)

A. 32

B. 24

C. 96

D. 64

E. 16

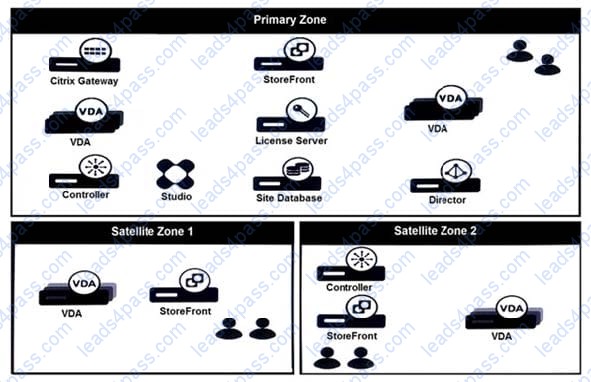

Scenario: A Citrix Architect needs to assess a Citrix Virtual Apps and Desktops environment. The Citrix Virtual Apps and Desktops diagram in the exhibit gives details about the current Site and zone design.

Click the Exhibit button to view the diagram.

Which statement is correct if the Delivery Controller in Satellite Zone 2 fails?

A. Virtual Delivery Agent (VDA) machines in Zone 2 will register within the Primary Zone

B. Virtual Delivery Agent (VDA) machines in Zone 2 will register within Satellite Zone 1

C. Virtual Delivery Agent (VDA) machines in Satellite Zone 2 will NOT register

D. Virtual Delivery Agent (VDA) machines will register using the Local Host Cache (LHC)

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment for a marketing and design company. One department uses several 3D applications based on OpenGL. These applications run as hosted applications within a single virtual machine (VM) running on a single Citrix Hypervisor host. The host is configured with 2 physical GPUs running NVIDIA GRID technology.

Which HDX 3D Pro method should the architect use for these 3D applications?

A. Software-virtualized GPU

B. Pass-through GPU

C. Hardware-virtualized GPU

D. CUDA-virtualized GPU

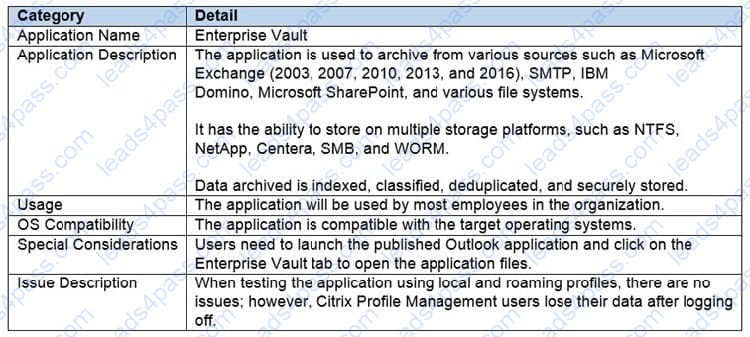

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. The architect has identified the Resource Layer requirements shown in the exhibit.

Click the Exhibit button to view the requirements.

Which Citrix Profile Management configuration could help the architect address the issue referenced in the exhibit?

A. Enable Cross-platform

B. Add the application folder to the Inclusion policy

C. Add the application folder to the Exclusion policy

D. Enable Active write back

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. During the project kickoff meeting, the organization stated the following business priorities:

"Overall, we want a robust solution that ensures users' ability to access resources at any time, even if the primary data center experiences an outage. Since employees will need to access resources from both inside and outside the corporate network, we need to ensure that this is enabled in a secure manner to protect sensitive data."

Which four design decisions align with the organization's stated business priorities? (Choose four.)

A. Redundancy should be implemented for all infrastructure components

B. Optimal Gateway Routing must be configured on StoreFront

C. A multi-Site architecture and disaster recovery (DR) plan is required

D. Server OS Virtual Delivery Agent (VDA) machines should be used to increase user density per machine

E. Single-image management should be included in the design

F. SmartAccess or SmartControl features should be considered for this environment

G. Citrix ADC is required for this environment

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. Currently,

the environment is configured as 2 locations with identical Citrix Virtual Desktops Sites. Each Site has 2

Delivery Controllers, 2 StoreFront servers, and 1 Citrix ADC high-availability pair. The same applications

have been published from both Sites for all users. Two zones (Zone A and Zone B) are configured in each

Site with 1 Delivery Controller in each zone. The Microsoft Exchange server is only accessible from Virtual

Delivery Agent (VDA) machines in Zone A in each Site.

Six access requirements have been identified:

Users should have a single URL when accessing resources from different Sites.

Users should always connect to the data center closest to their location.

Applications added to Favorites within the Citrix Workspace app should be retained when accessed from

different Sites.

Launched applications and desktops should always connect through a local Citrix ADC.

No duplication of applications published from different Sites.

Microsoft Outlook should always launch in Zone A.

What should the architect recommend configuring to avoid duplication of the same applications being

delivered from different Sites?

A. `Keywords: Featured' in the properties of the published applications

B. An Application Group

C. Zone preferences for VDA machines hosting the applications

D. Aggregate resources

Scenario: A Citrix Architect is designing a new Citrix Virtual Apps and Desktops environment. While performing the capabilities assessment for the existing infrastructure, the architect discovered substantial issues with packet loss and latency, and no current Quality-of-Service (QoS) technology is in place to manage these issues.

Which capability risk will the architect need to investigate to address these issues?

A. Access infrastructure

B. Disaster recovery (DR) plan and implementation

C. Network architecture

D. Windows Server and Active Directory (AD) environments

Scenario: A Citrix Architect is implementing a new Citrix Virtual Apps and Desktops environment. The IT team has purchased 1,000 Citrix Virtual Apps and Desktops Advanced licenses.

The company requires the IT team to produce a report of successful and failed connections of Citrix Virtual Apps sessions during the last 30 days.

Which two actions does the architect need to take to produce the report? (Choose two.)

A. Implement Citrix Application Delivery Management

B. Configure `GroomFailuresRetentionDays'

C. Configure `GroomSessionsRetentionDays'

D. Purchase Citrix Gateway Universal licenses

E. Purchase Citrix Virtual Desktops Premium licenses
